ASTM A335 ASME SA335 P9 Seamless Ferritic Alloy-Steel Pipe

Short Description:

ASTM A335 P9 Seamless Pipe for High-Temperature Service,A335 P9 Seamless Pipe reheated and furnished in the full-annealed, isothermal annealed, or normal-ized and tempered condition. the minimum tempering temperature are 1250°F [675°C].

Product Detail

Product Tags

ASTM A335 P9 Seamless Ferritic Alloy-Steel Pipe

Standard:ASTM A 335/A 335M
Standard Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service

ASTM A335 P9 Seamless Ferritic Alloy-Steel Pipes cover nominal (average) wall seamless alloy-steel pipe intended for high-temperature service.

A335 P9 is a high temperature chromium molybdenum alloy heat-resistant steel. Because of its good oxidation resistance, high temperature strength and sulfide corrosion resistance, A335 P9 is widely used in high temperature, high pressure, flammable and explosive pipelines of petroleum refining and chemical equipment, especially the direct heating pipes of heating furnace. The medium temperature can reach 550-600 ℃.



Equivalent grade
Grade Standard Country
STBA26 JIS G3462 Japan
T9 ASTM A213 U.S.A
HT7 SAVDNIK Sweden




ASTM A335 P9 Seamless Ferritic Alloy-Steel Pipe Quick Details
Manufacture:Seamless process ,Hot-finished or Cold-finished
Wall thickness(WT): 2.1mm——20 mm.
Outer diameter (OD): 21 mm——509mm
Length: 6M or specified length as required.
Ends: Plain End, Beveled End, Treaded


Additional Info
Port of Shipment: Tianjin, China
Payment Terms:T / T, LC
Delivery: 7-15 days after payment
Surface: Tubes will be varnished (Outside only) to prevent rust.
Marking: Standard + Steel Grade + Size + Heat No + Lot No
Package: Bundles (hexagonal),Wooden Boxes,Crates (steel/wooden) or as required



Materials and Manufacture
Grade P9 Pipe may be either hot finished or cold drawn with the finishing treatment.



Heat Treatment:
P9 Seamless Ferritic Alloy-Steel Pipe will be reheated and furnished in the full-annealed, isothermal annealed, or normal-ized and tempered condition. If furnished in the normalized and tempered condition, the minimum tempering temperature are 1250°F [675°C].



Chemical Composition of ASTM A335 P9

Grade Chemical Composition(%)
C Mn P S Si Cr Mo
 P9 ≤0.015 0.30-0.60 ≤0.025 ≤0.025 ≤0.50 4.00-6.00 0.45-0.65


Mechanical Properties of ASTM A335 P9
Grade Mechanical property
Tensile Strength(MPa) Yield Strength(MPa) Elongation(%)
 P9 ≥415 ≥205 ≥30



Outside diameter tolerances of ASTM A335 Seamless Ferritic Alloy-Steel Pipe
NPS Designator Over Under
in. mm in. mm
1⁄8 to 1 1⁄2 , incl. 1 ⁄ 64 (0.015) 0.40 1 ⁄ 64 (0.015) 0.40
Over 1 1⁄2 to 4, incl. 1 ⁄ 32 (0.031) 0.79 1 ⁄ 32 (0.031) 0.79
Over 4 to 8, incl. 1 ⁄ 16 (0.062) 1.59 1 ⁄ 32 (0.031) 0.79
Over 8 to 12, incl. 3 ⁄ 32 (0.093) 2.38 1 ⁄ 32 (0.031) 0.79
Over 12 ± 1 %


Hydrostatic Test
Each length of pipe shall be subjected to the hydrostatic test or nondestructive examination.


Mechanical Tests Required
Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test—For material heat treated in a batch-type furnace, tests shall be made on 5 % of the pipe from each treated lot.
For small lots, at least 1 pipe shall be tested. For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5 % of the lot, but in no case less than 2 pipe.


Marking
In addition to the marking prescribed in Specification A 999/A 999M, the marking shall include the length, the ANSI schedule number and the heat number or manufacturer’s number by which the heat can be identified.


Ordering Information
Orders for material includes the following, as required, to describe the desired material adequately:
(1) Quantity (feet, centimetres, or number of lengths),
(2) Name of material (seamless alloy steel pipe),
(3) Grade (P9),
(4) Manufacture (hot-finished or cold-drawn),
(5) Size (NPS or outside diameter and schedule number or average wall thickness),
(6) Length (specific or random),
(7) End finish (Ends Section of Specification A 999/A 999M),
(8) Test report required (Certification Section of Specification AA 999/A 999M),

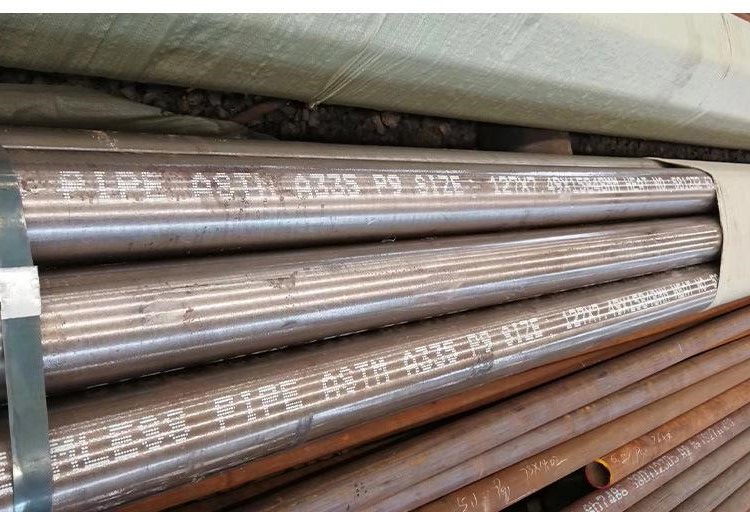

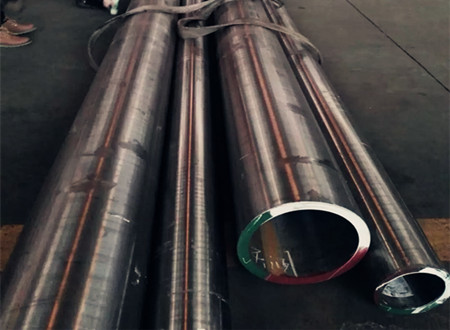

Photos of ASTM A335 P9 Seamless Ferritic Alloy-Steel Pipe

ASTM_A335_P9_Seamless_Ferritic_Alloy_Steel_Pipe   ASME_SA335_P9_Seamless_Ferritic_Alloy_Steel_Pipe

Note:
Material furnished under ASTM A335 conform to the applicable requirements of the current edition of Specification A 999/A 999M
